| Vendor_url | https://www.asrock.com/mb/AMD/A620AM%20Pro-A%20WiFi/index.asp |
| Производител | ASRock |
| Графика/Видео | Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/​FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Поддържани процесори | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Чипсет | AMD A620A |
| Expansion slots | CPU:;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 3.0 x4 Slot (PCIE2), supports x2 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/​BT PCIe WiFi module;- 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | CPU:;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/​2280 PCIe Gen4x4 (64 Gb/​s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/​2280 PCIe Gen4x4 (64 Gb/​s) mode;Chipset:;- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/​2280 PCIe Gen3x4 (32 Gb/​s) mode;- 2 x SATA3 6.0 Gb/​s Connectors ;Supports RAID 0 and RAID 1 for SATA storage devices;Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Тип памет | Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/​non-ECC, un-buffered memory up to 8000+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |

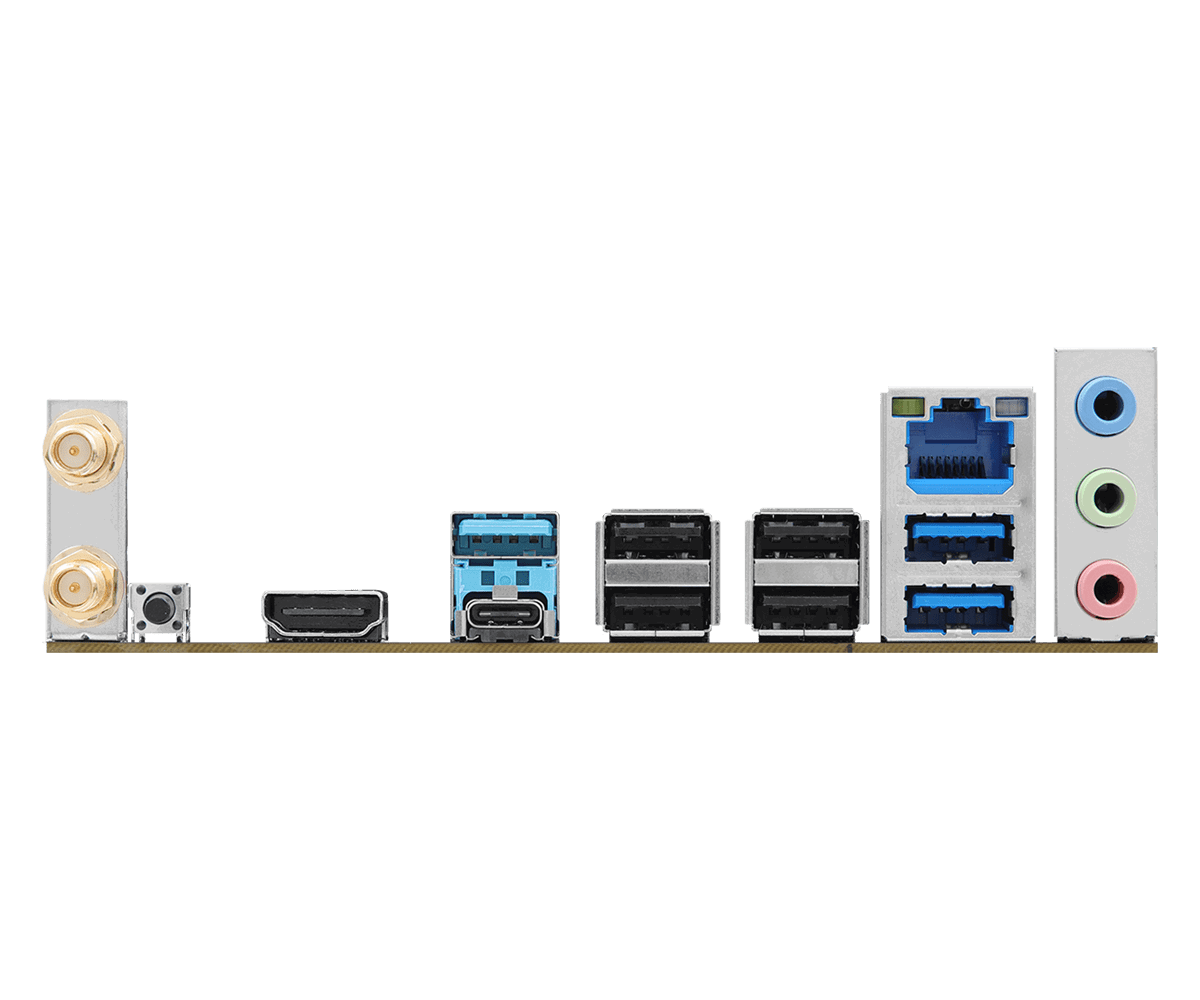

| Rear panel I/O | 2 x Antenna Ports;1 x HDMI Port;3 x USB 3.2 Gen1 Type-A Ports;1 x USB 3.2 Gen1 Type-C Port;4 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;HD Audio Jacks: Line in /​ Front Speaker /​ Microphone |
| USB | CPU:;- 1 x USB 3.2 Gen1 Type-C (Rear);- 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2));Chipset:;- 1 x USB 3.2 Gen1 Type-C (Front);- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front);- 8 x USB 2.0 (4 Rear, 4 Front) |
| Конектори | 1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;1 x 8 pin 12V Power Connector (Hi-Density Power Connector);1 x Front Panel Audio Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Звук | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Lan | 2.5 Gigabit LAN 10/​100/​1000/​2500 Mb/​s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streaming Modes;- User Customized Priority Control |
| Безжична комуникация | 802.11axe Wi-Fi 6E Module;Supports IEEE 802.11a/​b/​g/​n/​ac/​ax/​axe;Supports Dual-Band 2x2 with extended 6GHz band support;2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.2;Supports MU-MIMO |
| Bluetooth | 5.2 |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Операционна система | Microsoft Windows® 10 64-bit / 11 64-bit |
| Гаранция | 36 Months |
