| Vendor_url | https://www.msi.com/Motherboard/PRO-B850-S-WIFI6E |
| Производител | MSI |
| Цокъл | Socket AM5 |
| Графика/Видео | 1x HDMI™;
Support HDMITM 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
| Поддържани процесори | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Чипсет | AMD B850 |
| Expansion slots | 2x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E1 slot;
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/​ 7000 Series processors);
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/​ 8600/​ 8400 Series processors);
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/​ 8300 Series processor) |
| Storage | 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/​2280 devices;
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/​2260 devices;
4x SATA 6G;
M2_1 slot;
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/​ 7000 Series processors);
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors);
M2_2 slot;
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/​ 8700/​ 8600/​ 8400/​ 7000 Series processors);
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/​ 8300 Series processors);
*Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices;
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Тип памет | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 8200 - 5600 (OC) MT/​s /​ 5600 - 4800 (JEDEC) MT/​s;
Ryzen™ 9000 Series Processors max. overclocking frequency:;
• 1DPC 1R Max speed up to 8200+ MT/​s;
• 1DPC 2R Max speed up to 6400+ MT/​s;
• 2DPC 1R Max speed up to 6400+ MT/​s;
• 2DPC 2R Max speed up to 6000+ MT/​s;
Supports AMD POR Speed and JEDEC Speed;
Supports Memory Overclocking and AMD EXPOTM;
Supports Dual-Channel mode;
Supports Non-ECC, Un-buffered memory;
Supports CUDIMM, Clock Driver bypass mode only |

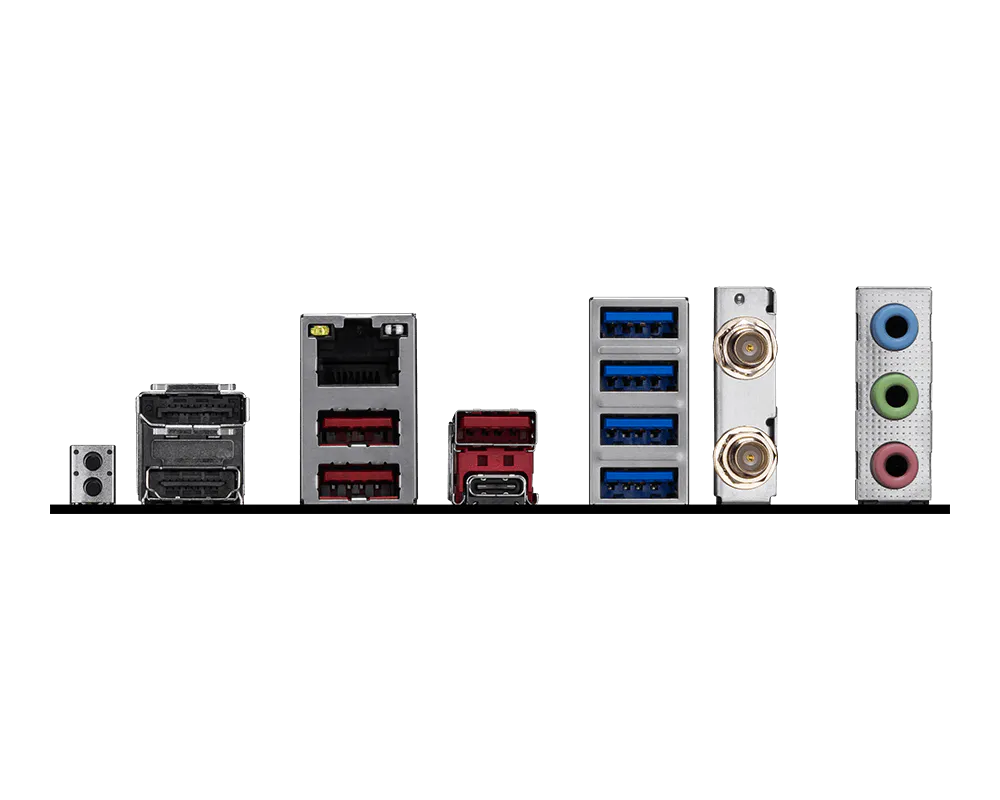

| Rear panel I/O | Clear CMOS Button;
DisplayPort;
2.5G LAN;
USB 10Gbps Type-A;
USB 5Gbps Type-A;
Wi-Fi /​ Bluetooth;
Audio Connectors;
Flash BIOS Button;
HDMI™;
USB 10Gbps Type-A;
USB 10Gbps Type-C |
| USB | 4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
3x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear);
1x USB 10Gbps Type C (Front) |
| Конектори | 1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
4x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
1x Tuning Controller connector(JDASH);
3x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED connector(JRGB);
1x TPM pin header(Support TPM 2.0);
4x USB 2.0 ports;
2x USB 5Gbps Type A ports;
1x USB 10Gbps Type C ports |
| Звук | Realtek® ALC897;
7.1-Channel High Definition Audio |
| Lan | Realtek® 8125 2.5G LAN |
| Безжична комуникация | Wi-Fi 6E;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/​RX, 2.4GHz/​ 5GHz/​ 6GHz* (160MHz) up to 2.4Gbps;
Supports 802.11 a/​ b/​ g/​ n/​ ac/​ ax;
Supports Bluetooth® 5.3**, FIPS, FISMA;
* 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11.;
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. |
| Bluetooth | Supports Bluetooth® 5.3**, FIPS, FISMA |
| Операционна система | Support for Windows® 11 64-bit |
| Други | 4x EZ Debug LED;
1x EZ Memory Detection LED |
| Размери | ATX
243.84mmx304.8mm |
