| Vendor_url | https://www.gigabyte.com/Motherboard/X870-GAMING-X-WIFI7#kf |
| Графика/Видео | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support native HDMI 2.1 TMDS compatible ports. |
| Чипсет | AMD X870 |
| Expansion slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/​7000 Series Processors support PCIe 5.0 x16 mode;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/​2) |
| Storage | x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/​22110/​2580/​2280 SSDs:;AMD Ryzen™ 9000/​7000 Series Processors support PCIe 5.0 x4/​x2 SSDs;AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/​x2 SSDs;AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/​x2 SSDs;1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/​22110/​2580/​2280 PCIe 4.0 x2 SSDs;1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/​22110/​2580/​2280 PCIe 4.0 x4/​x2 SSDs;4 x SATA 6Gb/​s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Тип памет | Support for DDR5 8200(OC) /​ 8000(OC) /​ 7800(OC) /​ 7600(OC) /​ 7200(OC) /​ 7000(OC) /​ 6800(OC) /​ 6666(OC) /​ 6600(OC) /​ 6400(OC) /​ 6200(OC) /​ 6000(OC) /​ 5600(OC) /​ 5200 /​ 4800 /​ 4400 MT/​s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/​2Rx8/​1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Rear panel I/O | iTE® I/O Controller Chip |
| USB | CPU+ASMedia USB4® controller:;- 2 x USB4® USB Type-C® ports on the back panel;CPU:;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 1 x USB 3.2 Gen 1 port on the back panel;CPU+USB 2.0 Hub:;- 4 x USB 2.0/​1.1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/​1.1 ports available through the internal USB headers |

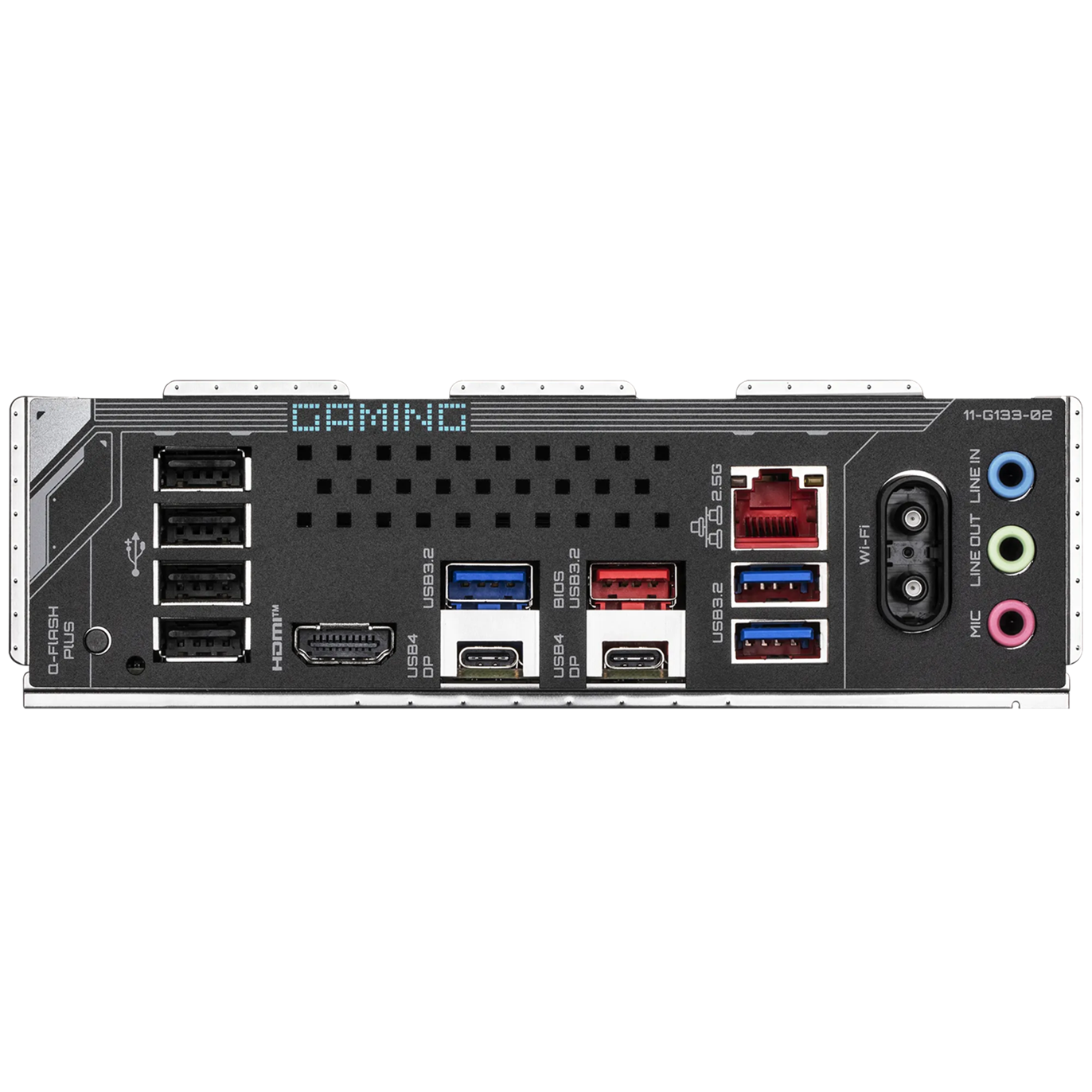

| Конектори | 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/​water cooling pump header;4 x system fan headers;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;4 x SATA 6Gb/​s connectors;3 x M.2 Socket 3 connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/​1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/​GC-TPM2.0 SPI 2.0/​GC-TPM2.0 SPI V2 module only);1 x power button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x Q-Flash Plus button;2 x antenna connectors (2T2R);1 x HDMI port(Note);2 x USB4® USB Type-C® ports (DisplayPort*);1 x USB 3.2 Gen 2 Type-A port (red);3 x USB 3.2 Gen 1 ports;4 x USB 2.0/​1.1 ports;1 x RJ-45 port;3 x audio jacks |
| Звук | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Безжична комуникация | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/​5/​6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard;Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/​5/​6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard |
| Bluetooth | 5.4 |
| BIOS | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX Form Factor; 30.5cm x 24.4cm |
| Операционна система | Support for Windows 11 64-bit;Norton® Internet Security (OEM version);LAN bandwidth management software |
